GC3 contains numerous revisions to physical parameterizations in all four model components. The global atmosphere (GA7) incorporates a large package of cloud and radiation changes, inclusion of the GLOMAP-mode aerosol scheme, revision to the numerics of the convection scheme, introduction of a seamless stochastic physics package for use in all systems representing an ensemble of weather states, together with a number of more minor changes. The global land surface (GL7) includes a number of changes of which the most significant is a new multi-layer snow scheme. The global ocean (GO6) incorporates a non-linear free surface, revisions to ocean mixing, an extension of the grid around Antarctica and inclusion of an ice shelf scheme. The latter two modifications are introduced to enable UKESM1 to include explicit models for the continental ice sheets over Greenland and Antarctica. Finally, the global sea ice (GSI7) now includes multi-category ice thermodynamics and a better representation of melt ponds, improving ice albedo.
Four ‘critical’ problems had been identified in GC2 for climate modelling and all four are significantly improved in GC3. These were (1) the warm sea surface temperature (SST) bias over the Southern Ocean (reduced by ~40% in GA7), (2) tropical tropopause layer temperature and humidity errors,(3) tropical monsoon precipitation errors, and (4) conservation of energy and freshwater. In addition there are considerable improvements to the representation of cloud processes. The warm tropical tropopause temperature and relative humidity biases impact stratospheric water vapour concentrations, which can have detrimental impacts on interactive stratospheric chemistry. For an accurate baseline climate in UKESM1 these biases needed to be improved. Figure 1 highlights the improvement in lower stratospheric temperature and humidity biases in the GA7 and GC3 configurations. This is primarily associated with the introduction of Hermite cubic interpolation for vertical advection of specific humidity together with Priestley conservation of potential temperature. For more details see Hardiman et al. (2015).

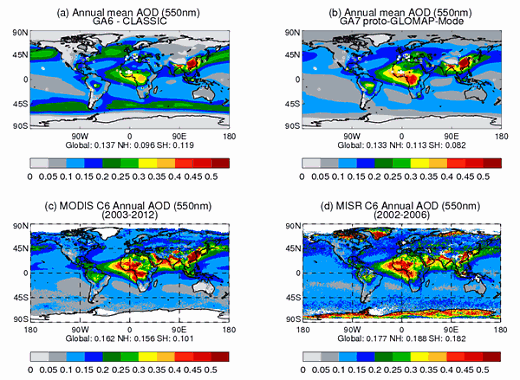

One of the major developments in GC3 is the implementation of a new aerosol scheme GLOMAP-Mode (Mann et al, 2010), replacing the older CLASSIC scheme. GLOMAP-Mode has been developed in collaboration with the UK academic community through the United Kingdom Chemistry and Aerosol (UKCA) project and represents a step change in the level of complexity with which aerosols are modeled in the UM. It is a 2-moment modal scheme simulating both aerosol mass and number of four aerosol species: sulphate, black carbon, organic carbon and sea salt. Aerosol number, size distribution, composition and optical properties are predicted from a detailed, physically-based treatment of aerosol microphysics and chemistry. Activation of aerosol particles to form cloud droplets is parameterized using the UKCA-Activate activation scheme (West et al., 2014). GLOMAP-mode will enable an improved representation of aerosol radiative effects and aerosol cloud interactions in UKESM1. Inclusion of modal dust is currently under development and so GC3 will continue to use the CLASSIC 6 bin dust scheme. Figure 2 shows the annual mean aerosol optical depth (AOD) from a GA6 (CLASSIC) AMIP and a GA7 prototype (GLOMAP-Mode) simulation along with remotely sensed AOD retrievals from the MODIS and MISR satellite instruments. Improvements in the AOD can be seen over high latitude ocean regions, tropical biomass burning regions and northern hemisphere continents.
A thorough assessment of GC3 will take place during 2016 and this will be drawn together into a series of papers and an assessment workshop to be held in the Met Office in June 2016.
- Hardiman, S. C. and co-authors (2015) Processes Controlling Tropical Tropopause Temperature and Stratospheric Water Vapor in Climate Models. J. Climate 28 6516-6535 doi:10.1175/JCLI-D-15-0075.1
- Mann, G. W. and co-authors (2010): Description and evaluation of GLOMAP-mode: a modal global aerosol microphysics model for the UKCA composition-climate model, Geosci. Model Dev., 3, 519-551, doi:10.5194/gmd-3-519-2010.
- Williams, K. D. and co-authors (2014) Assessment of GC2 (and components). HCCP & PWS report
- Williams, K. D. and co-authors (2015) The Met Office Global Coupled model 2.0 (GC2) configuration. Geosci. Model Devel. 8 1509–1524 doi:10.5194/gmd-8-1509-2015.
- West, R. E. L. and co-authors (2014) The importance of vertical velocity variability for estimates of the indirect aerosol effects. Atmos. Chem. Phys. 14 6369-6393 doi:10.5194/acp-14-6369-2014.
